Module Intro

Important Attention Reminder

Coding Style wiki​

Basic Instructions​

A logging system that supports Cipher & Plaintext (freely convertible), dynamic configuration, and overriding existing loggers; it also provides global toggle, global level, global color, per-logger toggle, per-logger level, and per-logger color configurations.

  • Version: v1.4.3 (com.michaelo.oxgkit.loggingsystem)
  • Namespace: OxGKit.LoggingSystem

Attention Most OxGKit modules (InfiniteScrollView, ActionSystem, NoticeSystem, InputSystem, TimeSystem, PoolSystem, Utilities) depend on this module for log output, so it is recommended to install it first.

Application Description​

Create the Config File​

  • Create the config file via Right-Click Create/OxGKit/Logging System/Create loggersconfig.conf (automatically saved to StreamingAssets), making it easy to modify the config file on a real device for debugging and tuning.

  • Configure via LoggingLauncher, or modify the config file in StreamingAssets directly.

Build Activation Symbol​

Important When building (Build), you must add the following symbol to Player Settings -> Scripting Define Symbols, otherwise logs will not be output (not required in the Editor):

OXGKIT_LOGGER_ON

Config File Encoding Conversion​

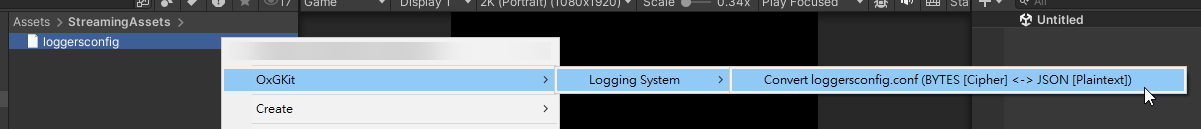

The config file supports conversion between BYTES [Cipher] and JSON [Plaintext] (Right-Click menu).

Reminder Cipher is recommended for release builds.

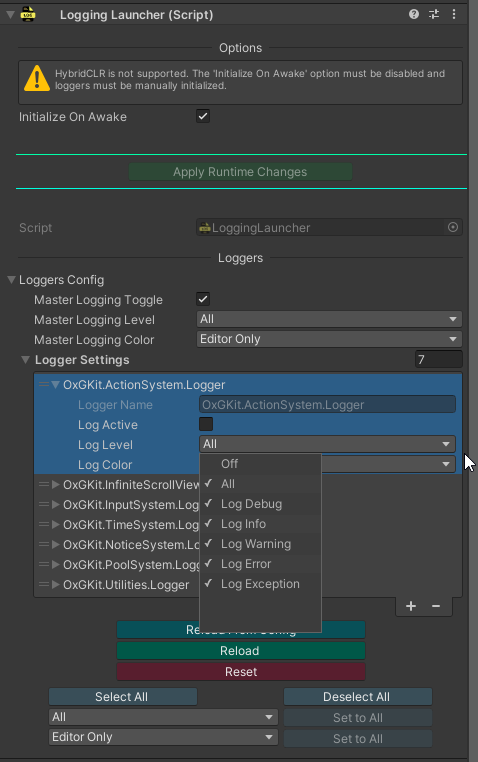

LoggingLauncher Configuration Interface​

LoggingLauncher can configure logActive (toggle), logLevel (level), and logColor (color).

  • Import the LoggingLauncher Prefab via Package Manager -> Samples, then drag it into the scene to activate the environment configuration (only needs to be activated once); it will automatically try to load the config file in StreamingAssets to control the log toggles.

Log Level​

Log Level can be switched to the following:

  • LogDebug (Print)
  • LogInfo (PrintInfo)
  • LogWarning (PrintWarning)
  • LogError (PrintError)
  • LogException (PrintException)

Table symbol legend:

  • G = Global (global setting / Master Logging Level).
  • P = Per-Logger (individual logger setting).
  • Gx = A single global level: LogDebug / LogInfo / LogWarning / LogError / LogException.
  • Px = A single per-logger level: LogDebug / LogInfo / LogWarning / LogError / LogException.
  • G ∩ P = Flag intersection (bitwise AND), the set of levels allowed by both the global and per-logger settings.

Summary rule: A level (Log Level) is output only when both G and P contain that level.

Global (G)Per-Logger (P)Effective Level (Output)
OffAny✗
AnyOff✗
AllAllDEBUG / INFO / WARNING / ERROR / EXCEPTION → ✓
AllSingle PxPx → ✓
Single GxAllGx → ✓
Single GxSingle PxIf Gx = Px → Gx → ✓; otherwise ✗
Any set GAny set PG ∩ P → ✓; if no intersection → ✗

Log Color​

Log Color can be switched to the following:

  • Disabled
  • Enabled
  • EditorOnly (no RichText coloring in release builds)
Global (G)Per-Logger (P)Effective ModeEditorPlayer / Build
DisabledAnyDisabled✗✗
EnabledDisabledDisabled✗✗
EditorOnlyDisabledDisabled✗✗
EnabledEnabledEnabled✓✓
EnabledEditorOnlyEditorOnly✓✗
EditorOnlyEnabledEditorOnly✓✗
EditorOnlyEditorOnlyEditorOnly✓✗

Simple Usage​

Implement a Custom Logger​

After adding or removing a Logger, you must call LoggingLauncher.TryLoadLoggers() to reload (it is recommended to define a default constructor to avoid errors with HybridCLR + Activator.CreateInstance(type)).

using OxGKit.LoggingSystem;

[LoggerName("MyLogger")]
public class MyLogger1 : Logging
{
    // If use HybridCLR must create a default constructor
    public MyLogger1() { }
}

Override an Existing Logger​

// Use same name to override MyLogger1
[LoggerName("MyLogger", true)]
public class OverrideMyLogger1 : Logging
{
    // If use HybridCLR must create a default constructor
    public OverrideMyLogger1() { }

    public override void Log(object message)
    {
        UnityEngine.Debug.Log("[Override]" + message);
    }

    public override void LogInfo(object message)
    {
        UnityEngine.Debug.Log("[Override]" + message);
    }

    public override void LogWarning(object message)
    {
        UnityEngine.Debug.LogWarning("[Override]" + message);
    }

    public override void LogError(object message)
    {
        UnityEngine.Debug.LogError("[Override]" + message);
    }

    public override void LogException(Exception exception)
    {
        UnityEngine.Debug.LogException(exception);
    }
}

Working with HybridCLR​

When working with HybridCLR where the main project and the hot-update project are separated, you must manually split the creation of the Loggers initialization flow into AOT and Hotfix parts. Refer to the following:

// HybridCLR (must uncheck the "Initialize On Awake" option on LoggingLauncher):
LoggingLauncher.CreateLogger<LoggingDemoLogger1>();
LoggingLauncher.CreateLogger<LoggingDemoLogger2>();
LoggingLauncher.CreateLogger<LoggingDemoLogger3>();
LoggingLauncher.CreateLogger<LoggingDemoLogger4>();
LoggingLauncher.TryLoadLoggers();

The following initializes the AOT project's Loggers in the AOT project (the Hotfix project's Loggers must be initialized in the Hotfix project):

Dynamically Configure Loggers​

// Reload LoggersConfig at Runtime (method 1)
var loggersConfig = new LoggersConfig
(
    new LoggerSettings("LoggingDemo.Logger1", true, LogLevel.LogDebug),
    new LoggerSettings("LoggingDemo.Logger2", true, LogLevel.LogWarning),
    new LoggerSettings("LoggingDemo.Logger3", true, LogLevel.Off)
);
LoggingLauncher.SetLoggersConfig(loggersConfig);

// Reload LoggersConfig at Runtime (method 2)
LoggingLauncher.ConfigureLogger("LoggingDemo.Logger1", false);
LoggingLauncher.ConfigureLogger("LoggingDemo.Logger2", true, LogLevel.LogWarning | LogLevel.LogError);
LoggingLauncher.ConfigureLogger("LoggingDemo.Logger3", false);

[Refer to the Example]

Installation​

Install via git URL
Add https://github.com/michael811125/OxGKit.git?path=Assets/OxGKit/LoggingSystem/Scripts to Package Manager

Third-Party Libraries (must be installed manually)

Samples (Package Manager -> Samples)

  • AI Agent Skills (see AI Agent Skills)
  • LoggingLauncher Prefab
  • LoggingSystem Demo

Module API​

Demo​

LoggingSystem Demo

LoggingSystem Build Test
