Module Intro

Important Attention Reminder

Coding Style wiki

---

Basic Instructions

Tween animation (only supports DoTween Pro). Configure tween tracks (Position, Rotation, Scale, Size, Alpha, Color) in the Inspector with Normal, Reverse, PingPong, Sequence play modes and editor Preview Mode; combine with DoTweenAnimEvent to play multiple DoTweenAnims as a group in Parallel or Sequence mode (with end callbacks).

• Version: v1.0.4 (com.michaelo.oxgkit.tweensystem)
• Namespace: OxGKit.TweenSystem

Main components (Add Component):

• Add Component/OxGKit/TweenSystem/DoTweenAnim
• Add Component/OxGKit/TweenSystem/DoTweenAnimEvent

Attention This module depends on DoTween Pro (must be purchased and installed by yourself), LWMyBox, and OxGKit.TimeSystem; install the dependencies first (see Installation).

---

Application Description

Tween Tracks

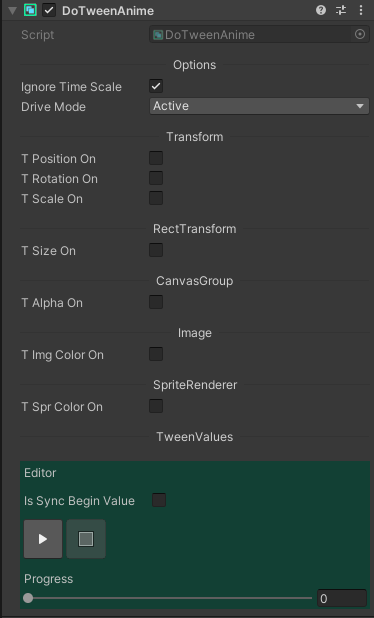

DoTweenAnim lets you enable the following tween tracks in the Inspector (multiple selections allowed); each track can be configured independently with from/to values (or Sequence waypoints), duration, easeMode, playMode, and loop settings (loopTimes / loopType):

Track Toggle	Tween Target	Required Component (auto find)
tPositionOn	Position	Transform
tRotationOn	Rotation	Transform
tScaleOn	Scale	Transform
tSizeOn	Size	RectTransform
tAlphaOn	Alpha	CanvasGroup
tImgColorOn	Image Color	Image
tSprColorOn	Sprite Color	SpriteRenderer

PlayMode

• Normal: plays forward (from → to).
• Reverse: plays backward (to → from).
• PingPong: plays back and forth (from → to → from).
• Sequence: plays along a waypoint list in order (from / to are ignored in this mode).

DriveMode

• Active: plays automatically when the GameObject becomes active (SetActive-driven), supports Loop and Interval replay.
• Event: plays only when driven by DoTweenAnimEvent or code (trigger controls forward/backward), ideal for UI open/close animations.

Preview Mode

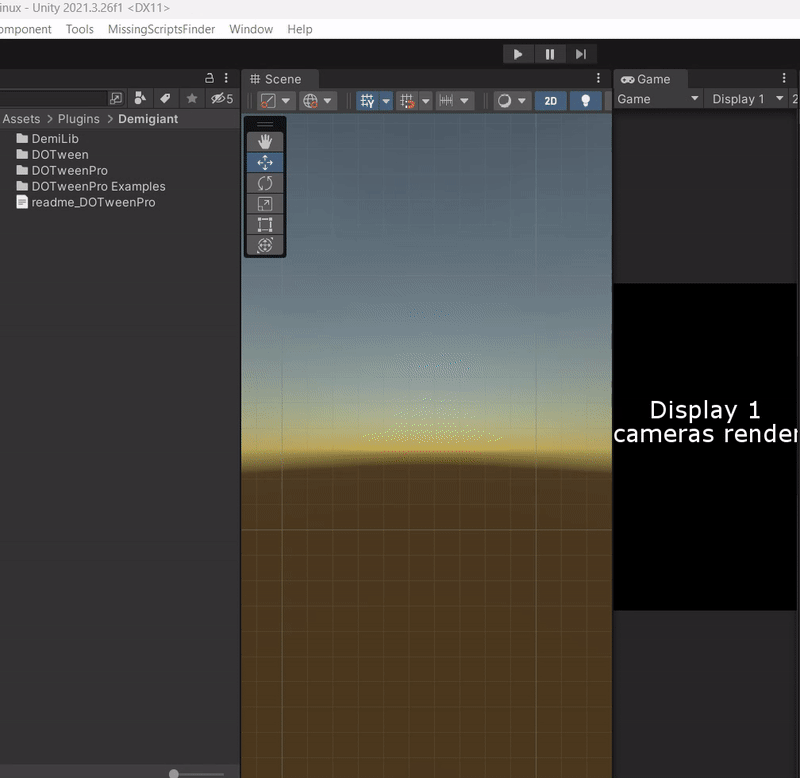

Preview Mode (Only DoTweenAnim component is supported)

※Note: The DoTweenAnimEvent only plays at runtime.

[Refer to Example]

---

Simple Usage

Group Playback (DoTweenAnimEvent)

Drag multiple DoTweenAnims (with DriveMode set to Event) into the DoTweenAnimEvent list, then play them from code:

using DG.Tweening;
using OxGKit.TweenSystem;
using UnityEngine;

public class PanelController : MonoBehaviour
{
    [SerializeField]
    private DoTweenAnimEvent _panelAnim;

    // Open panel (plays forward)
    public void OpenPanel()
    {
        this._panelAnim.PlayNormal(() => Debug.Log("Panel opened"));
    }

    // Close panel (plays backward)
    public void ClosePanel()
    {
        this._panelAnim.PlayReverse(() => this.gameObject.SetActive(false));
    }

    // Trigger toggle (alternates direction on each call)
    public void TogglePanel()
    {
        this._panelAnim.PlayTrigger();
    }
}

---

Installation

Install via git URL
Add https://github.com/michael811125/OxGKit.git?path=Assets/OxGKit/TweenSystem/Scripts to Package Manager

Third-party libraries (must be purchased and installed by yourself)

• Use DoTween Pro v1.0.335 or higher

Third-party libraries (must be installed by yourself)

• Use LWMyBox v1.1.4 or higher, Add https://github.com/michael811125/LWMyBox.git to Package Manager
• Use OxGKit.TimeSystem, Add https://github.com/michael811125/OxGKit.git?path=Assets/OxGKit/TimeSystem/Scripts to Package Manager

Create DoTween Assemblies

Important After importing DoTween Pro, you must create the DoTween Assemblies via Tools -> Demigiant -> DOTween Utility Panel -> Create ASMDEF so that this module can correctly reference DOTween.Modules.

Samples (Package Manager -> Samples)

• AI Agent Skills (refer to AI Agent Skills)
• TweenSystem Demo

---

Module API

• Runtime
  • DoTweenAnim (using OxGKit.TweenSystem)
  • DoTweenAnimEvent (using OxGKit.TweenSystem)

---

Demo

TweenSystem Demo
